| Specification | Details |
|---|---|
| Engine Type | Volkswagen Type 1 Air-Cooled Flat-4 |
| Configuration | Horizontally opposed 4-cylinder |
| Displacement | 2276 cc |
| Bore | 94.0 mm |
| Stroke | 82.0 mm |
| Bore × Stroke | 94 × 82 mm |
| Cooling System | Air-cooled, Doghouse cooling |
| Aspiration | Naturally aspirated |
| Engine Case | Aluminum Type 1 performance engine case |
| Crankshaft | Forged 82 mm counterweighted stroker crankshaft |
| Connecting Rods | Forged performance rods |
| Pistons & Cylinders | Forged 94 mm piston and cylinder set |
| Cylinder Heads | Street Performance dual-port heads |
| Camshaft | Performance street camshaft (grind not published) |
| Lifters | Performance matched lifters |
| Fuel System | Dual 40 mm Kadron or Dual 40/44 HPMX carburetors |
| Ignition | HEI electronic ignition |
| Charging System | Alternator |
| Cooling Tin | Doghouse cooling tin |
| Exhaust | A1 Sidewinder stainless-steel exhaust with turndown muffler |
| Flywheel | 12-volt performance flywheel |
| Fuel | Premium unleaded gasoline recommended |
| Assembly | Professionally assembled, cam broken in, tuned, and test-run |
| Condition | 100% new components |
| Installation | Complete turnkey engine, ready to install |

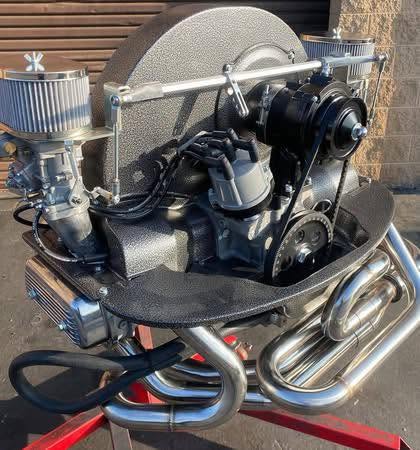

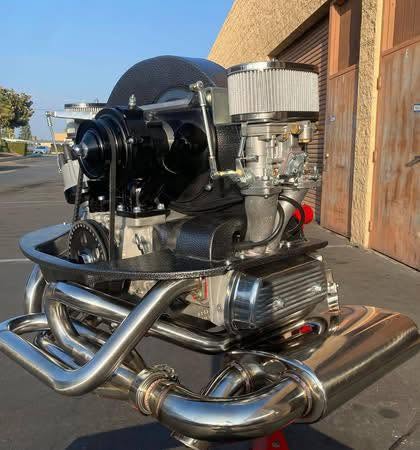

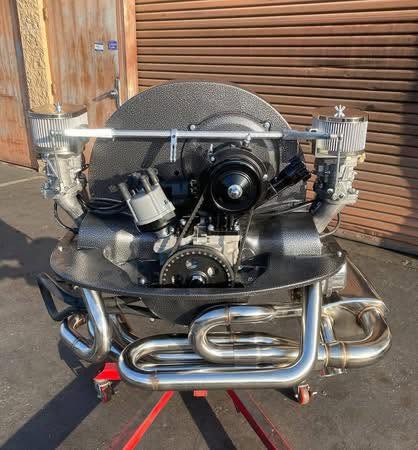

Rebuild 2276cc Volkswagen Turnkey VW Engine
$4,800.00
82mm crank, 5.400 H beam rods, stright cut gears, scat 1.4 rockers, D ported heads 42X37.5 valves, CB magna spark distributor, powder coated sheet metal, SS side flow exhaust system, stage 1 clutch kit.
Description
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
2180cc STREET SPECIAL Porsche Cooling Engine
Type 1 engine is the perfect addition to your Beetle, Splitscreen, or Baywindow vehicle (with altered tinware). With Porsche Cooling and quality parts throughout, this engine is built to last and provide top-notch performance. All new parts mean a turn key engine, so no exchange unit is needed. Plus, it can be built into various sizes to suit your intended purpose. The included Forged Crankshaft, Performance Cam kit, Chromoley 200mm Flywheel, Horse Power 220 , HD Gland nut, and forged rods ensure that this engine will exceed your expectations in both power and durability.
Not Rebuilt 1914cc Turn Key Engine 100hp
Included Components
The turnkey package includes:
- Complete long block
- Single carburetor and intake manifold
- High-flow air cleaner
- HEI electronic distributor
- Alternator
- Complete doghouse cooling system
- Engine tin
- Fuel pump
- Crank pulley
- Spark plugs and ignition wires
- Performance exhaust system
- Valve adjustment completed
- Ignition timing preset
- Camshaft break-in completed
Not Rebuilt 2332cc Turn Key Engine 160hp 2026
Full specification can be built to suit your vehicle and usage.
160hp
Comes with the following performance parts:
Performance camshaft
48 Twin weber carbs
Choice of breather tower or breather box.
Deep Sump
Autolinea Super Case, shuffle pinned and full flowed
Bolt on rocker covers
Forged 84mm crank
H Beam connecting rods
Heavy duty Chromoley pushrods
Racing Gland nut
Performance forged 94mm Cylinder heads
Forged ratio rockers
Chromoley 200mm Flywheel
Top quality Distributor
Silicone HT Leads/coil
Tinware powder coated to customer choice
Full spec list available
Crank assembly dynamically balanced
1 year warranty
Rebuild 1915cc Volkswagen Turnkey VW Engine
Engine Case
- New AutoLinea or AS41 magnesium/aluminum case
- Dual oil pressure relief
- Full-flow oil passages
- Shuffle-pinned and align-bored as required
- Case savers installed
Crankshaft
- Forged 69 mm counterweighted crankshaft
- Dynamically balanced
- 8-dowel flywheel connection
- Heavy-duty chromoly gland nut
Connecting Rods
- Forged I-beam rods
- Balanced set
- ARP-style rod bolts (builder dependent)
Pistons & Cylinders
- 94 mm forged or hypereutectic pistons
- 94 mm thick-wall cylinders
- Three-ring piston design
- Balanced rotating assembly
Camshaft
Common choices include:
- Engle W110
- Engle W120
- CB Performance cams
These provide a strong mid-range powerband for street driving.
Cylinder Heads
- AutoLinea or performance dual-port heads
- CNC three-angle valve job
- 40 x 35.5 mm valves (common street setup)
- Dual valve springs
- Chromoly retainers
Valve Train
- Chromoly pushrods
- Solid rocker shafts
- HD rocker arms
- Heavy-duty lifters
Lubrication
- High-volume Schadek oil pump
- Stock or deep oil sump
- External oil filter (many builders)
- Oil capacity: approximately 2.5–3.5 quarts depending on sump configuration
Cooling
- Doghouse fan shroud
- Offset oil cooler
- Wide cooling fan
- Complete cooling tin
- Thermostat provisions (builder dependent)
Fuel System
- Dual Weber 40 IDF, EMPI HPMX 40, or Dellorto DRLA 40 carburetors
- Cross-bar linkage
- Performance intake manifolds
- High-flow air cleaners
Ignition
- Electronic distributor
- Electronic ignition module
- High-output ignition coil
- 8 mm performance plug wires
- NGK or Bosch spark plugs
- 130 Horse Power
Rebuild 2332cc Volkswagen Turnkey VW Engine 150HP
| Specification | Details |
|---|
| Engine Type | Volkswagen Type 1 Air-Cooled Flat-4 |
| Configuration | Horizontally opposed 4-cylinder |
| Displacement | 2332 cc |
| Bore × Stroke | 94 mm × 84 mm |
| Cooling System | Air-cooled, Doghouse fan shroud |
| Engine Case | Performance aluminum Type 1 engine case |
| Crankshaft | Forged 84 mm counterweighted stroker crankshaft |
| Connecting Rods | Forged performance connecting rods |
| Pistons & Cylinders | Forged 94 mm piston and cylinder set |
| Cylinder Heads | Performance dual-port heads |
| Camshaft | Performance street camshaft |
| Fuel System | Dual 40 mm Kadron or 40/44 HPMX carburetors |
