| Specification | Details |
|---|---|
| Engine Type | Volkswagen Type 1 Air-Cooled Flat-4 |
| Configuration | Horizontally opposed 4-cylinder |
| Displacement | 2165 cc |
| Bore | 94.0 mm |
| Stroke | 78.4 mm |
| Bore × Stroke | 94 × 78.4 mm |
| Cooling System | Air-cooled, Doghouse cooling |
| Aspiration | Naturally aspirated |
| Engine Case | Performance aluminum Type 1 engine case |
| Crankshaft | Forged 78.4 mm counterweighted stroker crankshaft |
| Connecting Rods | Forged performance connecting rods |
| Pistons & Cylinders | Forged 94 mm piston and cylinder set |
| Cylinder Heads | Street Performance dual-port heads |

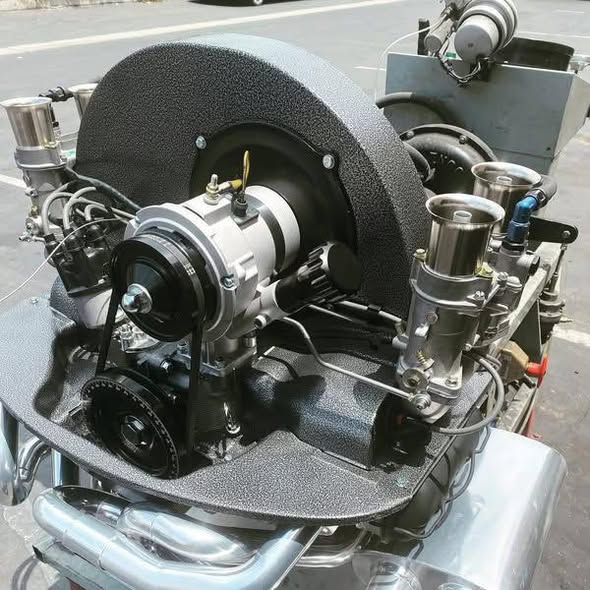

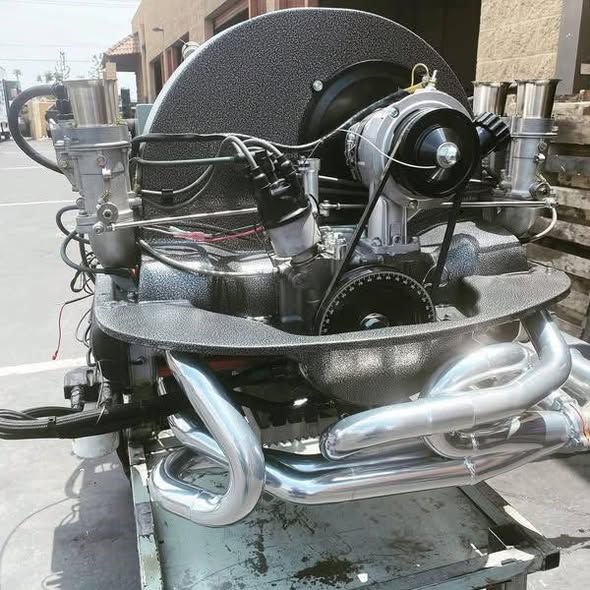

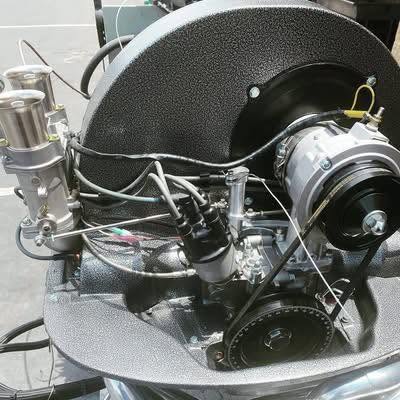

Rebuild 2165cc Volkswagen Turnkey VW Engine
$4,500.00

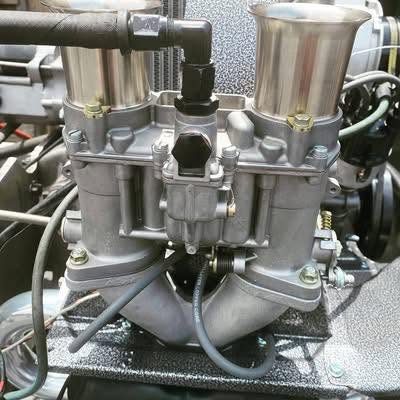

2165cc engine W/ scat 78mm crank, chromoly flywheel, 5.325 H beam rods, FK87 cam, Stright cut gears, wiseco pistons in cima cylinders, stage 3 heads 42X37.5 valves, auto craft 1.4 rockers, 9.5:1 compression, new Weber 48 IDAs, Jaycee linkage, complete turnkey with AA side glow exhaust jet coated silver, making right at 170HP on Dyno
Description
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
2180cc STREET SPECIAL Porsche Cooling Engine
Type 1 engine is the perfect addition to your Beetle, Splitscreen, or Baywindow vehicle (with altered tinware). With Porsche Cooling and quality parts throughout, this engine is built to last and provide top-notch performance. All new parts mean a turn key engine, so no exchange unit is needed. Plus, it can be built into various sizes to suit your intended purpose. The included Forged Crankshaft, Performance Cam kit, Chromoley 200mm Flywheel, Horse Power 220 , HD Gland nut, and forged rods ensure that this engine will exceed your expectations in both power and durability.
Brand New 2110cc Turnkey VW Engine
COMPLETE ALL NEW PARTS TURN KEY ENGINE.
- Not Rebuilt & No Core Needed-
DYNAMICALLY BALANCED ROTATING ASSEMBLY IN HOUSE.
ENGINE CASE: Autolinea Aluminum Super Case, Full Flowed, Shuffle Pinned, Clearance for bigger stroke cranks. (Stronger than the original VW cases)
CRANKSHAFT: 82mm 4340 Chromoly Counter. Weighted, 8 Dowel.
RODS: H-Beam or iBeam, ARP Bolts.
CAMSHAFT: Engle or Scat with Bolt-on Gear.
LIFTERS: To match cam.
FLYWHEEL: 8 Dowel Forged Chromoly Lightened.
GLAND NUT: Chromoly with Washer.
MAIN BEARINGS: Standard Steel Center.
ROD BEARINGS: Standard.
CAM BEARINGS: Double Thrust.
OIL PUMP: 26mm or (30mm on request) with Steel Full Flow Cover.
DEEP SUMP: 1.5 Quart.
SUMP PLATE: Billet Aluminum with drain plug.
HEAD STUDS: Chromoly Studs/Nuts.
PISTONS & CYLINDERS: Performance 90.5mm with Clip Retainers.
PUSHROD TUBES: Sprung loaded type.
HEADS: 40x36.5 Stainless Valves, 3/4" Spark Plug Holes.
PUSHRODS: Manton Chromoly.
ROCKERS: Forged 1.25 Ratio.
VALVE COVER: Bolt-on Aluminium.
GASKETS: Elring German kit.
FUELLING: Dual Weber Carburetor Kit, Linkage kit, Manifolds, Chrome Air Cleaners, Ethanol resistant Fuel Hose.
TINWARE: Black or Chrome.
Doghouse Fan Shroud, Front, Rear, Pulley & Dual Port Cylinder Tins, Breast Plate.
CHARGING: 12 Volt Alternator 55 amp, Steel Strap, Welded Fan, Hub kit.
PULLEYS: Steel Pulleys & Chrome Nuts.
IGNITION: Electronic Ignition Distributor, Clamp, Coil, Silicone Spark Plug Leads.
OIL COOLING: Doghouse Oil Cooler, Oil Pressure Switch.
EXHAUST AND CLUTCH KITS ARE NOT INCLUDED IN THE PRICE.
Rebuild 2180cc Volkswagen Turnkey VW Engine
| Specification | Typical Value |
|---|---|
| Engine Type | Volkswagen Type 1 Air-Cooled Flat-4 |
| Displacement | 2180 cc |
| Bore × Stroke | 92 mm × 82 mm |
| Cooling | Air-cooled |
| Crankshaft | 82 mm forged counterweighted stroker |
| Pistons & Cylinders | 92 mm forged set |
| Cylinder Heads | Performance dual-port heads |
| Fuel System | Usually dual 44 mm carburetors or electronic fuel injection |
| Camshaft | Performance street cam |
| Exhaust | Merged header performance exhaust |
| Horsepower | Typically 170 hp |
