1915cc Engine Kit (est. 120hp) (image shown not of this kit)
Description:
Using a 69mm crankshaft and 94mm pistons, these engine Kits are easy to assemble.
1915cc Engine Kit includes:
SCAT C25 Performance Camshaft Kit which includes Camshaft, Cam gear, Bolts, Lifters x8,
Universal AS41 Engine Case (fits Type-1 & Type-2) Cut for 94’s
Chromoly I-beam Rods (VW Journal) 5.400″ length (set of 4)
Full Flow Oil Pump and cover (Pump outlet plugged)
Case assembly kit.
Elring Gasket set & Rear Main Seal – 1300 – 1600cc
Main Bearings (Std.)
Rod Bearings – Type-1 Std.
Stainless steel Push Rod Tubes (set of 8)
Big valve Heads 40X35.5 94 Bore (two heads) Hi Rev Valve Springs
Heavy duty Push Rods
Big Bore Piston Kit, 94 x 69mm
Wrist Pin Clips (set of 8)
Bolt on Valve Covers (set of 2)
8mm Deflector Plates – fits 13, 15, & 1600cc (set of 2)
Case Washer Set
Cam Plug
69mm Forged Crank
Full weight Flywheel – 200mm (o-ring seal)
Heavy Duty Gland Nut / Heavy duty washer
8mm Head Stud Kit – Dual Port
Dual Thrust Camshaft Bearing Set.
Crankshaft Gear Assembly Kit w/Spacer
1.1:1 Stock Ratio Rocker set. Forged German Refurbished.
End Play Shim Kit
Case Lock Nut Kit
Engine Case Bolts
(Flywheel and Crankshaft come ready balanced)
Sealant – Permatex aviation sealant. Free.
HP figure is approximate and based on Dual choke Carbs, 1 1/2″ Merged Header with compression set at 8.5:1.

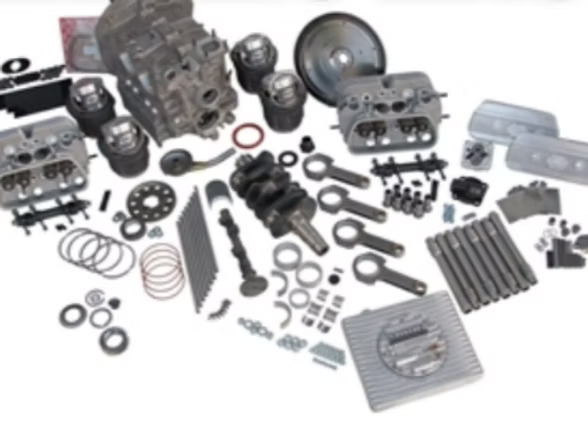

(Image used is a general image of an engine which may not be this exact kit)
***No deep sump, rocker covers or pushrod tubes in this kit.***
